Bakelite Material Electrical PCB Mount 5x20mm Fuse Block With Quick Connect

Name: Bakelite Material Electrical PCB Mount 5x20mm Fuse Block With Quick Connect
Brand: Tianrui
Price: 1 USD

Quality Bakelite Material Electrical PCB Mount 5x20mm Fuse Block With Quick Connect wholesale

Brand Name : Tianrui

Model Number : 517 518 518A

Certification : ROHS

Place of Origin : China

MOQ : 1000pcs

Price : Negotiable

Payment Terms : T/T, Paypal, Mastercard, Wetern Union, Alipay, etc

Supply Ability : 1000000PCS per Month

Delivery Time : 5-7 work days

Packaging Details : PE bag, Bulk

Product Name : 517 518 518A Fuse Holder

Current Rating : 15A

Voltage Rating : 250V

Material : Bakelite

Plated : Tin-plated spring brass

Fuse Specification : 5x20mm Fuse

Type : PCB type

Terminal : Quick Connect

Application : Electrical

Package : Polybag

Contact Now

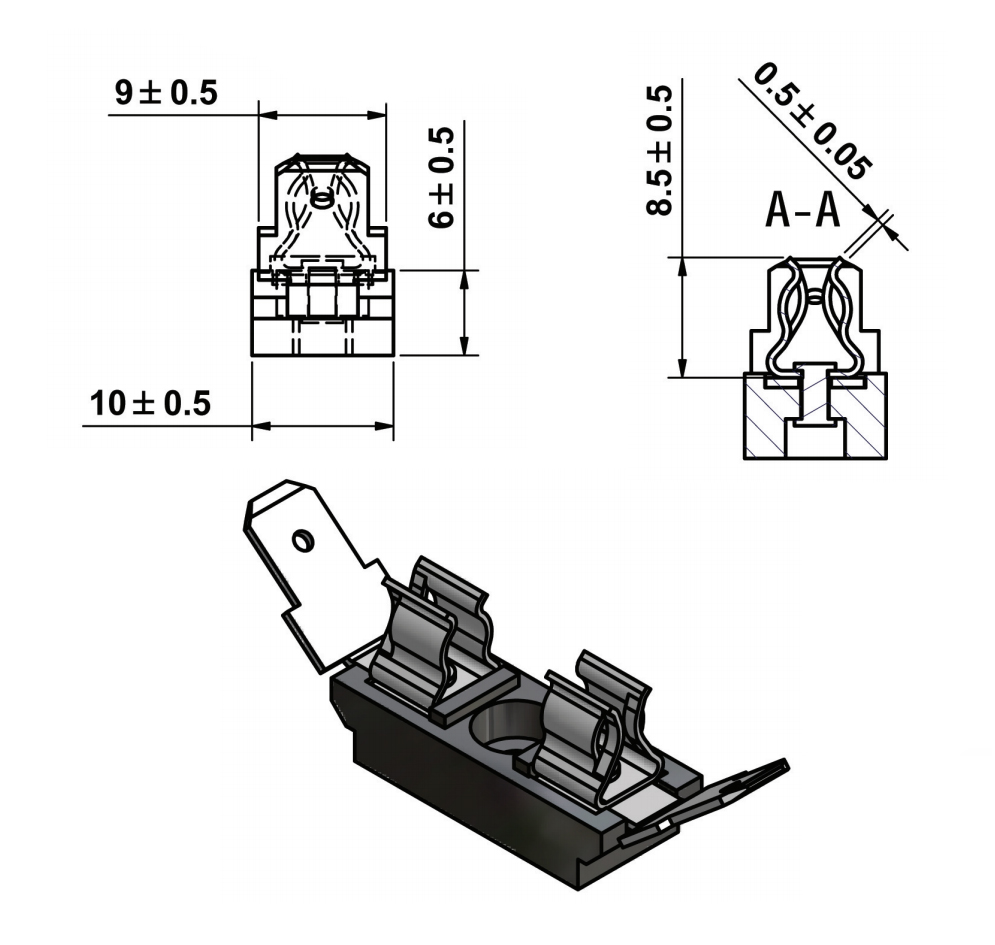

Bakelite Material Electrical PCB Mount 5x20mm Fuse Block With Quick Connect

517

5.2mm FUSE BLOCK

SPECIFICATIONS

Electrical	Rated for currents up to 15A
Clip/Terminals	Tin-plated spring brass. Ear type.
Base	Phenolic laminate bakelite
SPECIFICATIONS
Insertion & Extraction Force=1 .5Kg.Min.
Dielectric Strength For 60 Seconds=AC 2000V Min.
Suitable Rated Current=15A 250V
Insulation Resistance At 500V DC= -500M Ω Min.
Temperature Rise=60°C Max.

Bakelite Material Electrical PCB Mount 5x20mm Fuse Block With Quick Connect

518

5.2mm FUSE BLOCK

SPECIFICATIONS

Electrical	Rated for currents up to 15A
Clip/Terminals	Ni-plated spring brass.Ear type.
Base	Phenolic laminate bakelite
SPECIFICATIONS
Insertion & Extraction Force= 1.5Kg.Min.
Suitable Rated Current=15A 250V
Insulation Resistance At 500V DC	500M Ω Min.

Bakelite Material Electrical PCB Mount 5x20mm Fuse Block With Quick Connect

518A

5.2mm FUSE BLOCK

SPECIFICATIONS

Electrical	Rated for currents up to 15A
Clip/Terminals	Tin-plated spring brass. Ear type.
Base	Phenolic laminate bakelite
SPECIFICATIONS
Insertion & Extraction Force=1 .5Kg.Min.
Dielectric Strength For 60 Seconds=AC 2000V Min.
Suitable Rated Current=15A 250V
Insulation Resistance At 500V DC= -500M Ω Min.
Temperature Rise=60°C Max.

Bakelite Material Electrical PCB Mount 5x20mm Fuse Block With Quick Connect

Contact Details:

Andy Wu

Email: andy@tianrui-fuse.com.cn

Tel/Whatsapp: +86 13532772961

Wechat: HFeng0805

Skype: andywutechrich

QQ: 969828363

Product Tags:

5x20mm Fuse Block

Bakelite Fuse Block

Bakelite PCB Mount Fuse Holder

Bakelite Material Electrical PCB Mount 5x20mm Fuse Block With Quick Connect Images
